Next generation geothermal data systems
Ultra-high temperature downhole tools and surface devices

scroll down

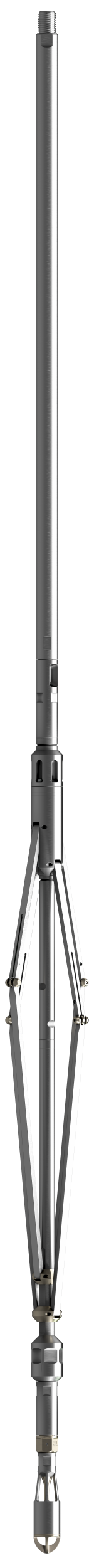

PTS X-Y Caliper

Measures pressure, temperature, flow (spinner) and well bore (X-Y) in ultra-high temperature environments.

Operates in temperatures up to 350 °C for up to 4 hours on slickline.

Modular Sensors

Less downtime for calibrations with user replaceable, pre-calibrated sensor modules. Pre-calibrated modules can be replaced without sending the tool back for factory calibration.

Spinner utilizes a 3-reed switch design for greater accuracy and resolution.

Collapsible down to 3"
Expandable up to 13.5"

Accuracy

High-accuracy temperature, pressure, and spinner modules provide high resolution data throughout the entire operational range

Integration

Integrates with the Field Hub wireline measurement system for depth correlation along with line speed, and line tension measurement.

Automated data merging provides a seamless user experience.

Products

PTS X-Y Caliper

The PTS X-Y Caliper is an ultra-high temperature geothermal logging tool that is designed to continuously measure pressure, temperature, internal diameter, and flow data in ultra-high temperature geothermal wells. It is designed with advanced HT electronics and proven flask technology for ultra-high temperature operation.
Slickline

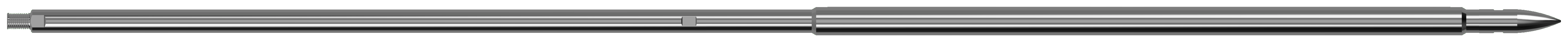

PTS MAX

The PTS MAX tool is an ultra-high temperature geothermal logging tool that is designed to continuously measure pressure, temperature, and flow data in ultra-high temperature geothermal wells. It is designed with advanced HT electronics and proven flask technology for ultra-high temperature operation.
Slickline
SRO

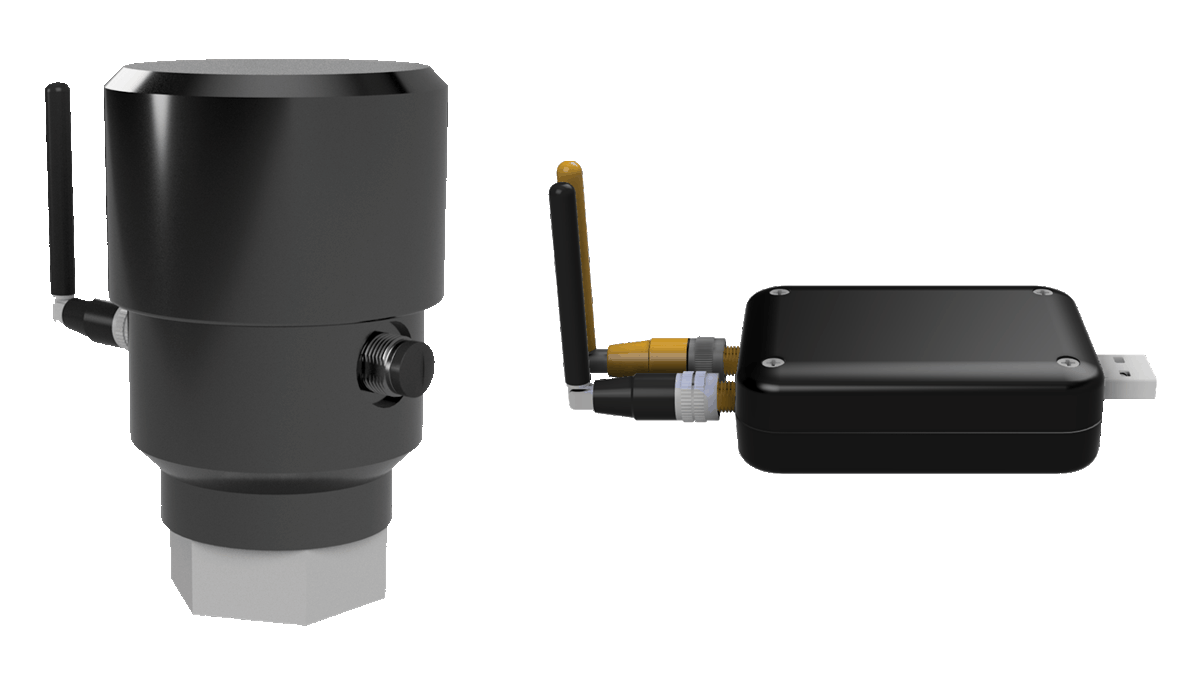

Field Hub

The Field Hub wireline measurement system compliments downhole tools such as the Kaldera PTS MAX and PTS X-Y tools for easy depth correlation of downhole data along with line speed and line tension measurement. An SRO version of the unit is also available for real-time remote telemetry from compatible downhole tools. Field Hub integrates into the Stratus IO Platform for cloud connectivity and data syncing.
Slickline
SRO
